Reverse curve

Starting with the roller I then used the foot powered squeezer. This caused some cracking and splitting which was not ideal!
It was very difficult to make an even spreading to cause the reverse curve.

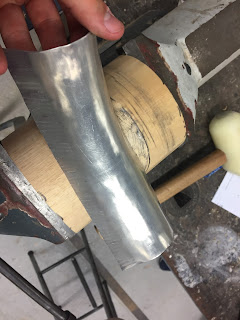

Moving onto the wooden mould the shape was made symmetrical and the curve enhanced.
Using the metal curved dolly I pulled the side curves down to make it look neat and pretty.
Here is a timelapse of me making the side curves.

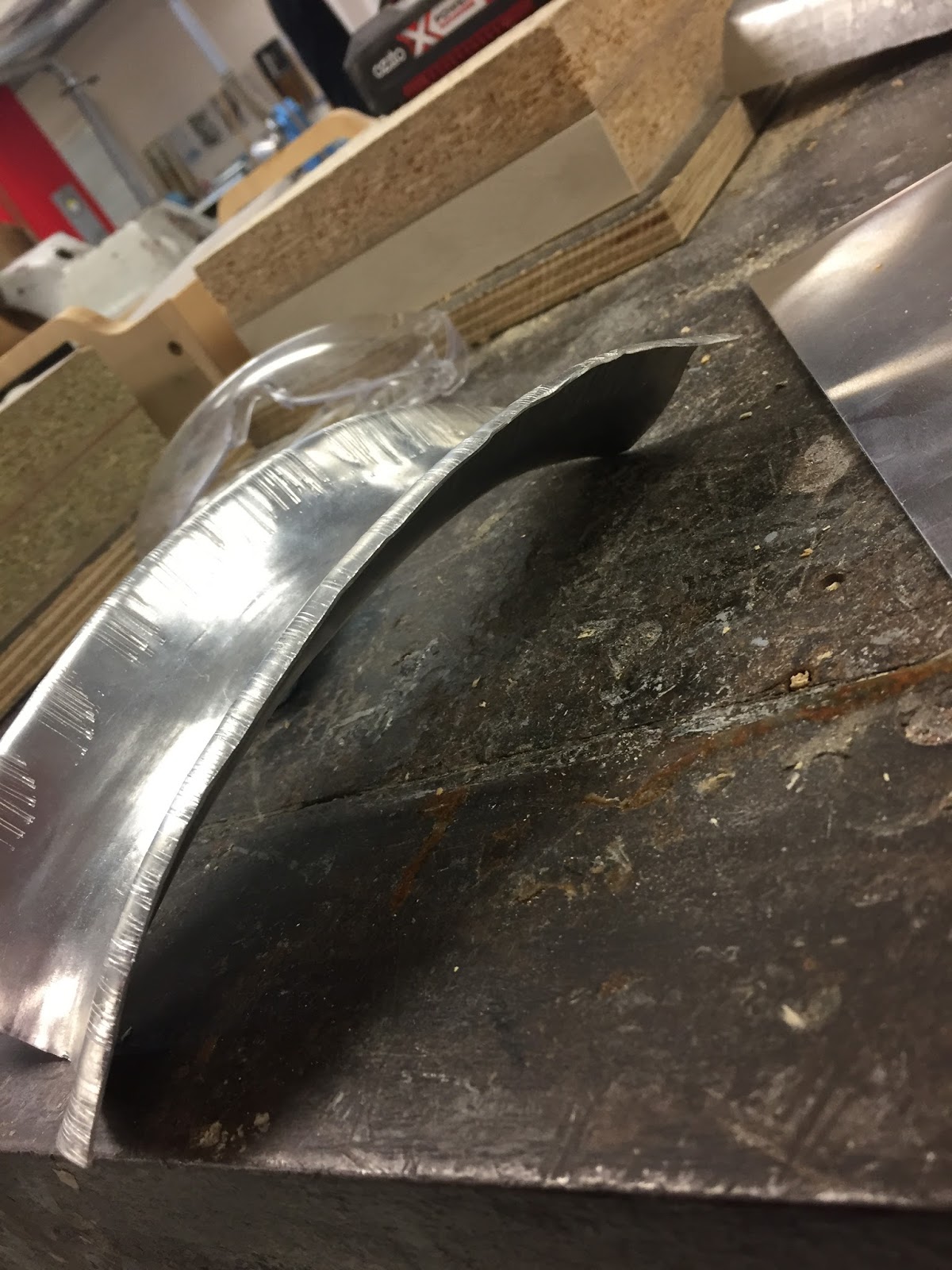

 Finishing off the edge curve and making it even and symmetrical (and of course beautiful!).
